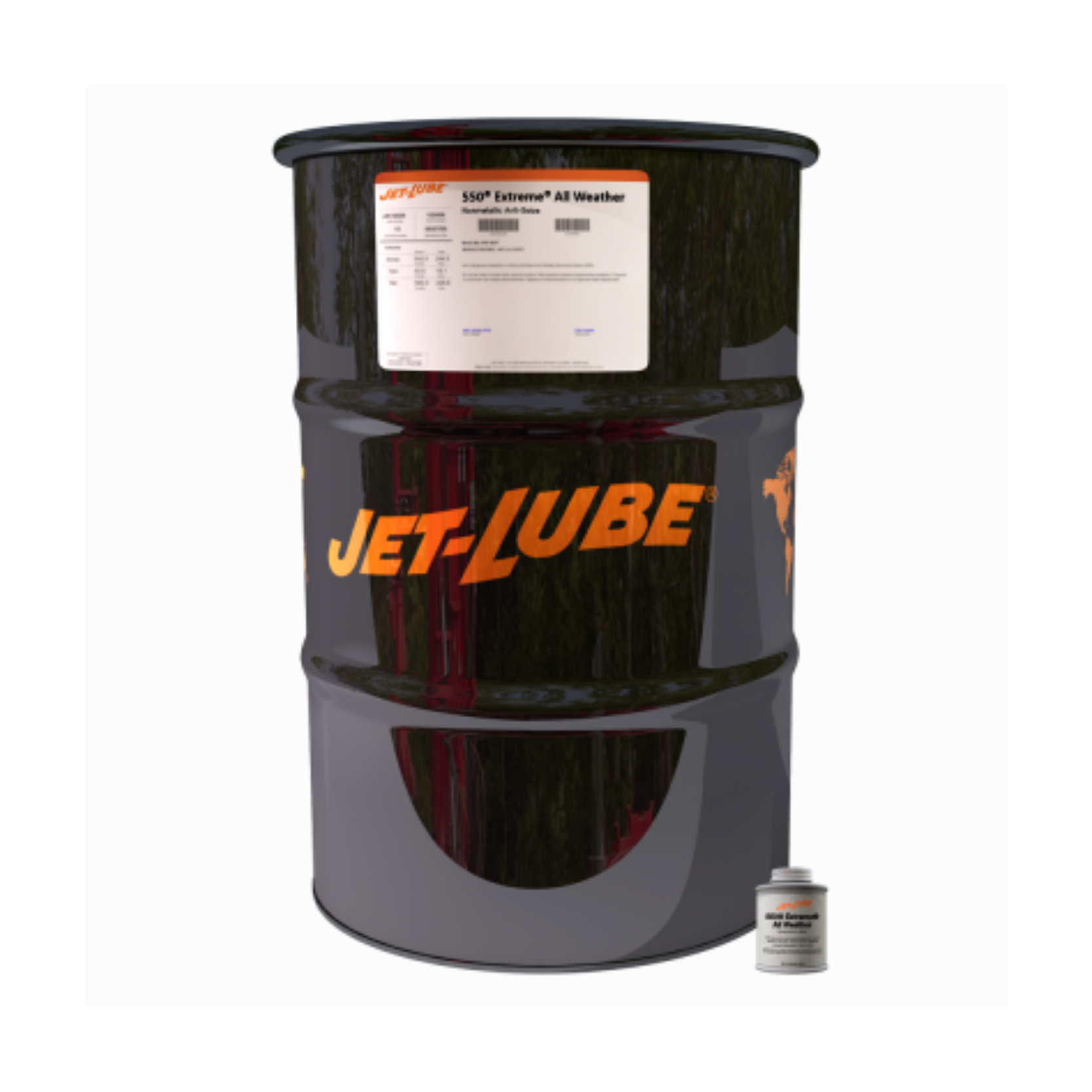

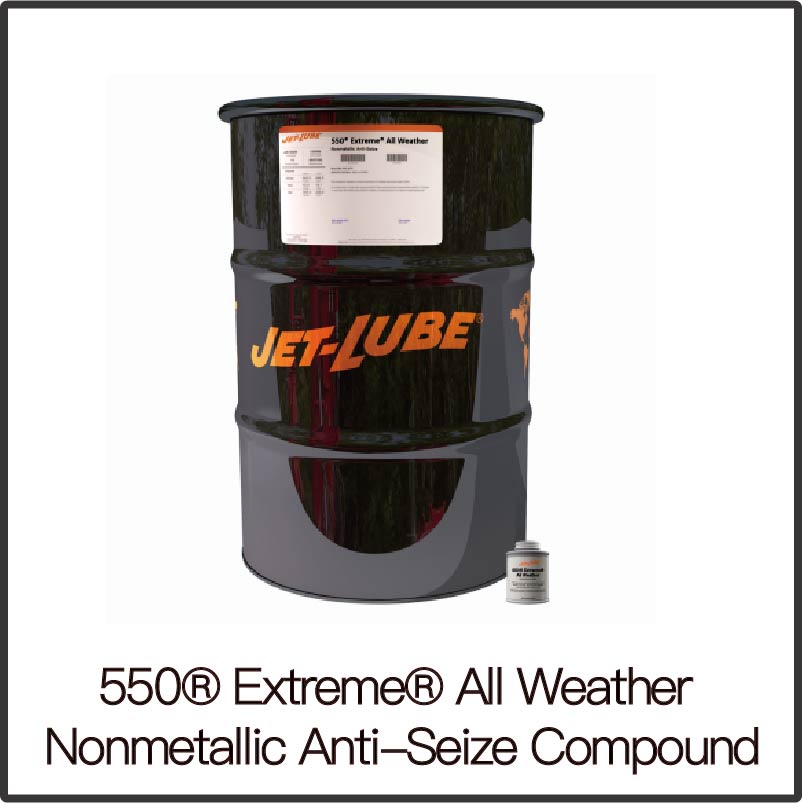

550 Extreme All Weather
Nonmetallic Anti-Seize & Thread Lubricant
DESCRIPTION
An enhanced formulation using a balance of molybdenum disulfide and surface modified synthetic graphite combined to provide protection for a wide variety of applications over a wide temperature range. 550 Extreme All Weather is the ideal product for petrochemical plant maintenance needs. Its composition offers maximum protection against seizure and heat freeze. 550 Extreme All-Weather eases assembling and dismantling, saving man hours. It assures protection against rust, oxidation, and corrosion. It will not harden, evaporate, or settle out; and it requires no thinning.
550 Extreme All Weather utilizes a fully synthetic fluid, calcium sulfonate complex-based grease that is fortified with effective rust and corrosion inhibitors and provides inherent anti-wear properties. Each principal anti-seize, low friction ingredient provides important properties and characteristics to 550 Extreme All Weather.
As an added benefit, when compared to Anti-Seize compounds containing greater than 40% molybdenum disulfide the coefficient friction of 550 Extreme All Weather is less sensitive to temperature. High molybdenum products can have substantial friction function drops when hot torqueing bolts are between 250-400ºF.
FEATURES
- Exceptional brushability down to -40°F (-40°C)
- Lead-free
- Not affected by contraction, expansion, or vibration
- Enhanced rust and corrosion resistance
- Protects against seizure, heat-freeze, galling, rust, and corrosion
- Lowers friction and reduces wrench torque
- Provides easy makeup and breakout
- Reduces maintenance costs
SPECIFICATIONS
| Base Materials | Calcium Sulfonate / Petroleum |
| Friction / Nut-Factor |
(Nut-Factor) 1” Uncoated B7 Studs @ 80 ksi: 0.15
(Nut-Factor) 1” Uncoated B7 Studs @ 50 ksi: 0.18 (Nut-Factor) 1” Uncoated B7 Studs @ 30 ksi: 0.19 |
| Certifications |
MIL-PRF-907F
Raytheon Specification – M8656839 Type III |
| Service Rating |
Select Applications/Services: 2400°F (1316°C)
Brushable to or as a lubricant: -10°F (-23°C) Static Applications: -265°F (-165°C)** ** Based on component literature data in cryogenic applications.
|
